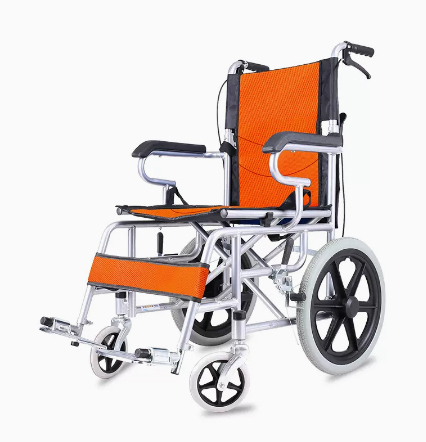

Small Wheel Baffle FW0240314S1

Gross weight: 12kg

Front wheel diameter: 15cm thick 2.5CM

Front wheel ruler inches: 6 inches

Rear wheel diameter: 38cm thickness 3.5CM

Rear wheel ruler inches: 16 inches

Width: 57cm

Seat width: 45cm length 40cm

Seat height: 45cm

Armrest to seat: 20cm

Car length: 87cm

Car height: 87cm

Load-bearing: 100kg

Backrest height: 45cm

Armrest to ground height: 65cm

Armrest length: 27cm

Width between handrails: 47cm

Seat to pedal: about 37-42CM

Packaging method (volume):

Length, width, height, 87*57*87, folding size: 76*24*67cm, carton packaging size: 78*24*74cm, solid tire, non-replaceable inflatable tire, cannot be used with the dining table

Distinguishing feature:

1) Lightweight, small and easy to carry, foldable back

2) High-quality thin sponge 3D bee net cushion and backrest (about 1CM thick), environmentally friendly, odorless, durable, comfortable and breathable and anti-bedsore, there is a storage bag on the back of the wheelchair, which is convenient for storing small items such as water cups

3) Front and rear wheels are solid tire hubs for ABS high-quality engineering plastic It has good properties such as high temperature resistance, corrosion resistance and wear resistance. Our wheelchair uses polyurethane tires, which are better than ordinary tires with high load-bearing capacity, high elasticity and wear resistance. And there will be no tread stripping, which increases the service life and safety of the wheelchair. The shock absorption and anti-skid performance is better, strong and durable, and there is no need to inflate and not be afraid of pricking.

4) It uses a thickened and reinforced high-quality carbon steel frame, which has the advantages of high hardness, strong force and high density. The texture is harder and not easy to deform. Under the seatFang is double X maza support, stronger bearing capacity

5) front and rear double brakes, elastic and adjustable, the position of the driver, the brake can stop the brake to prevent the car from slipping, and equipped with a seat belt. The length can be adjusted according to its own comfort.

6) armrest, ABS high-quality engineering plastic, anti-skid texture handrail, comfortable to prevent the palm slipping of the car.

7) The foot pedal is made of ABS high-quality engineering plastic, which is strong and durable, beautiful and generous, removable, and has a retractable space of about 5 cm at the foot pedal, which is more convenient for users of different heights.

8) The rear of the wheelchair helps the pedal to cross the slope and pedal more labor-saving, easy to cross the slope shock absorption belt and other complex terrain 9) pedal rod screw fixation can adjust the height of about 5CM and the rotation direction
